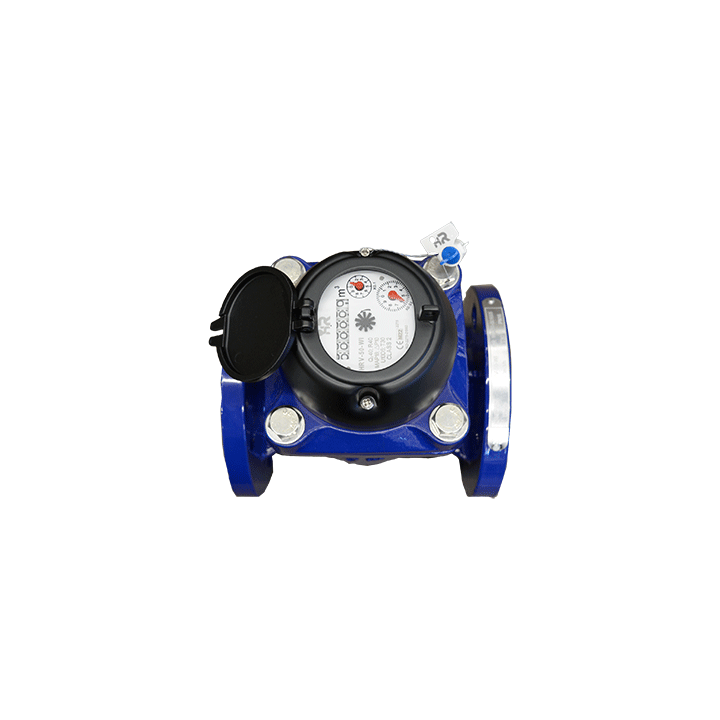

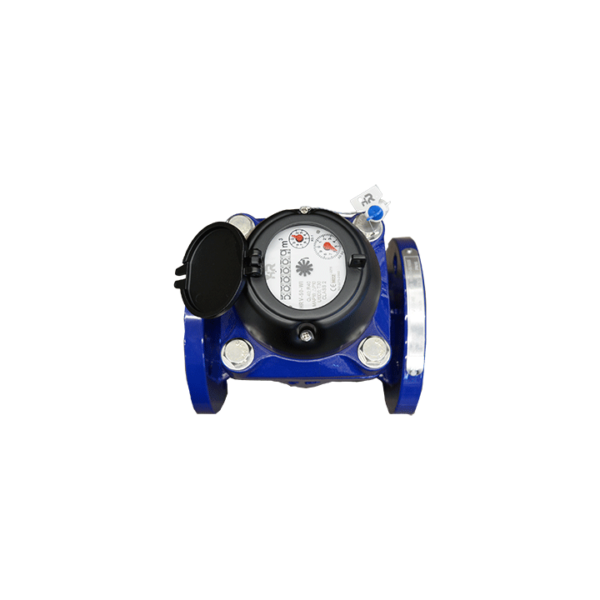

TANGENTIAL METER HRV-WI (EN)

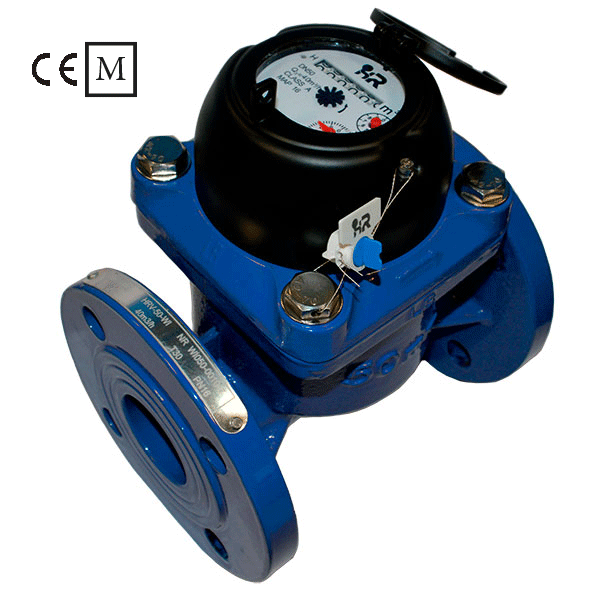

TANGENTIAL METER HRV-WI (EN) - Imagen 2

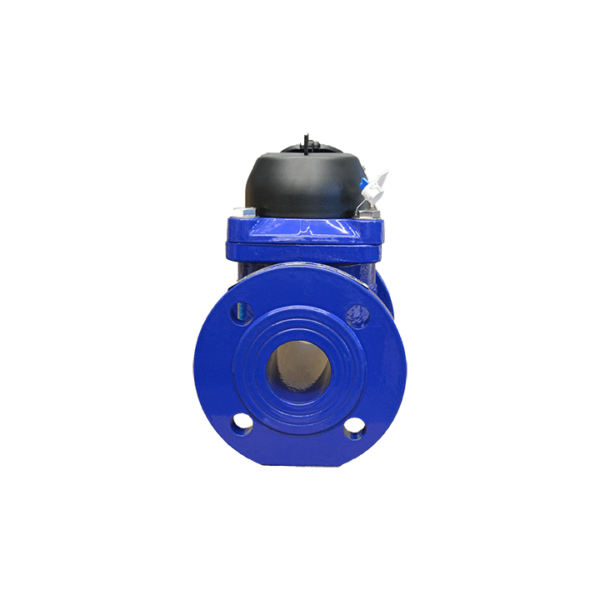

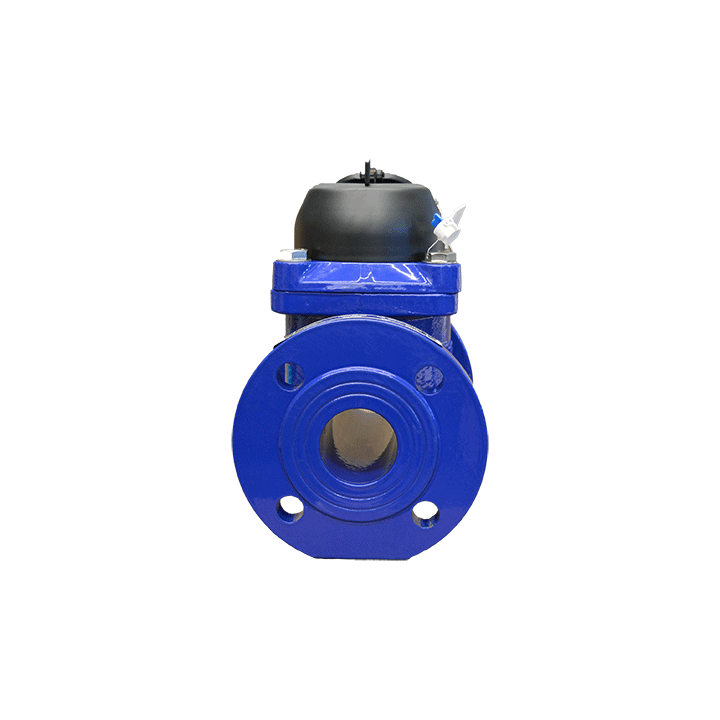

TANGENTIAL METER HRV-WI (EN) - Imagen 3

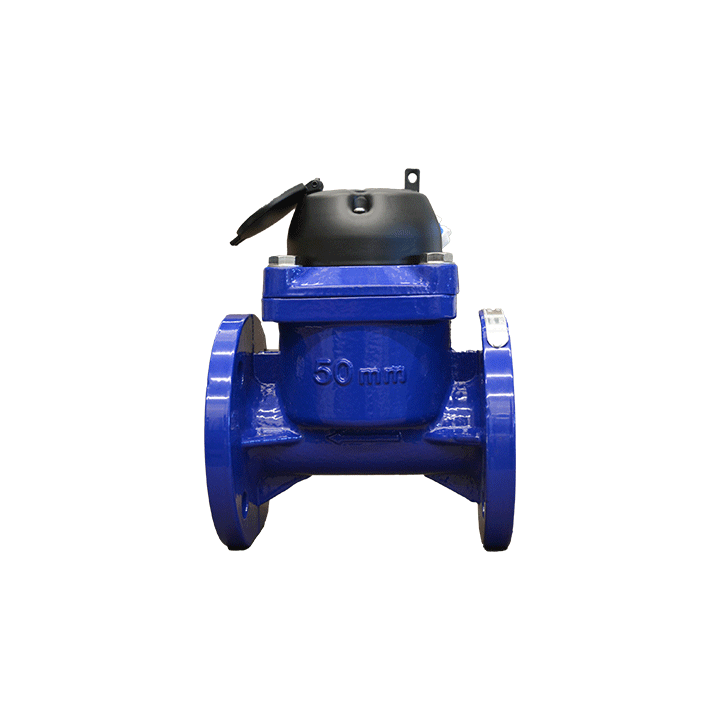

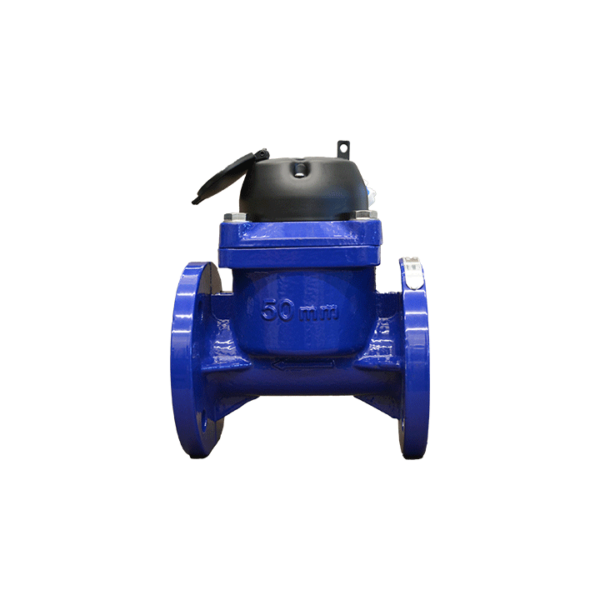

TANGENTIAL METER HRV-WI (EN) - Imagen 4

TANGENTIAL METER HRV-WI (EN)

Tangential turbine meter, with the turbine at the top of the pipe span, which allows a high flow rate and prevents the turbine from being damaged by the passage of small branches or stones that may be in the water. It is a meter that uses a tangential turbine as a speed sensor, with magnetic transmission and dry sphere. Manufactured especially for use in irrigation, agricultural and wastewater applications. The head loss due to the effects of the measurement is minimal. Our tangential meters are characterised by their high robustness and measurement stability.

MID certificate

Categoría:

Descripción

HRV-WI:
It is a counter that uses a tangential turbine as a speed sensor, with magnetic transmission and a dry sphere. Manufactured especially for use in irrigation, agricultural and wastewater applications. The special design of the turbine allows it to work with high sensitivity at low flow rates. The measuring insert is encapsulated and rotatable. The viewfinder does not fog up inside, guaranteeing easy reading. The loss of load due to measurement effects is minimal. Our tangential meters are characterized by their high measurement stability.

FEATURES:

  • Body in GG-25 cast iron with epoxy paint for food use, baked.
  • Direct totalization through numbered rollers.
  • Termination with standardized UNE flanges.
  • Fully removable mechanism without the need to disassemble the meter from the pipe.
  • Pre-equipped for impulse emission. Reed, optical and magnetic pulse option.
  • Internal mechanisms made of technical plastics in combination with stainless steel for the metal parts.
  • Dry and watertight sphere, with direct magnetic transmission. Mixed reading through central needle and numbered drums, very wide verification step.
