APPLICATIONS:

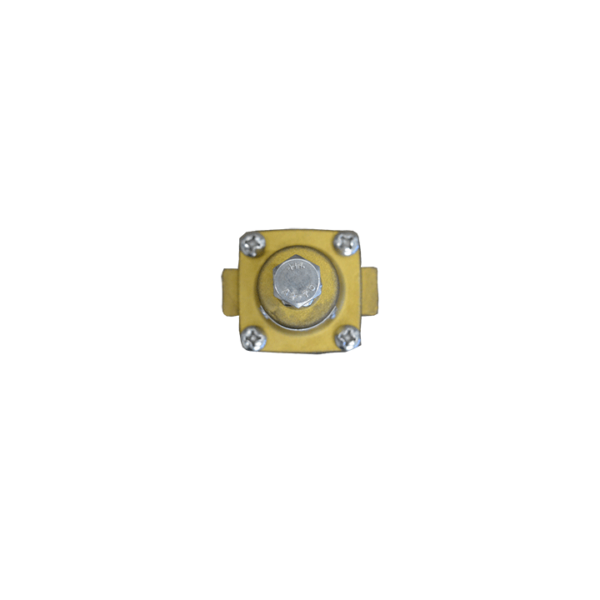

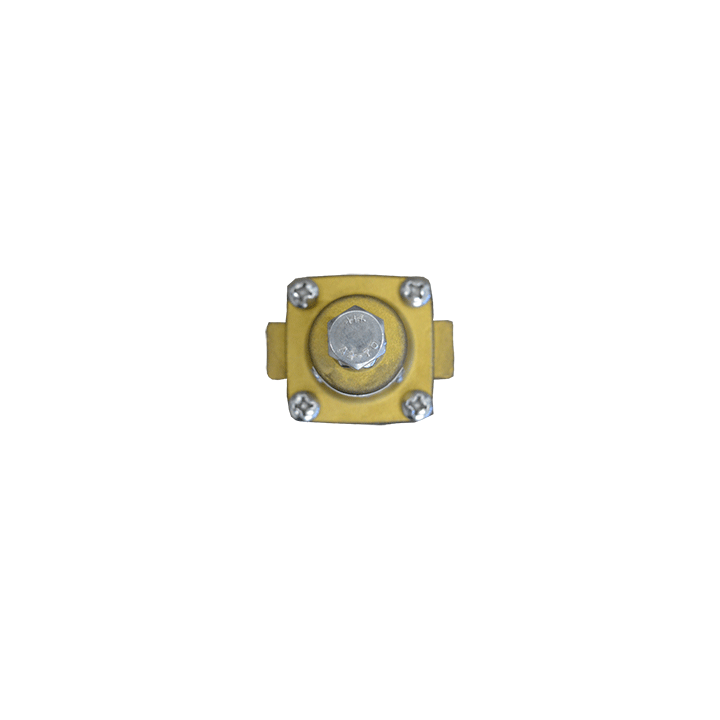

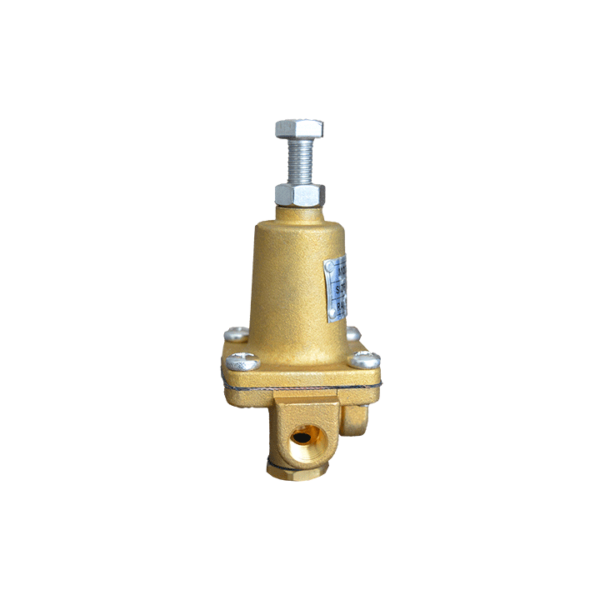

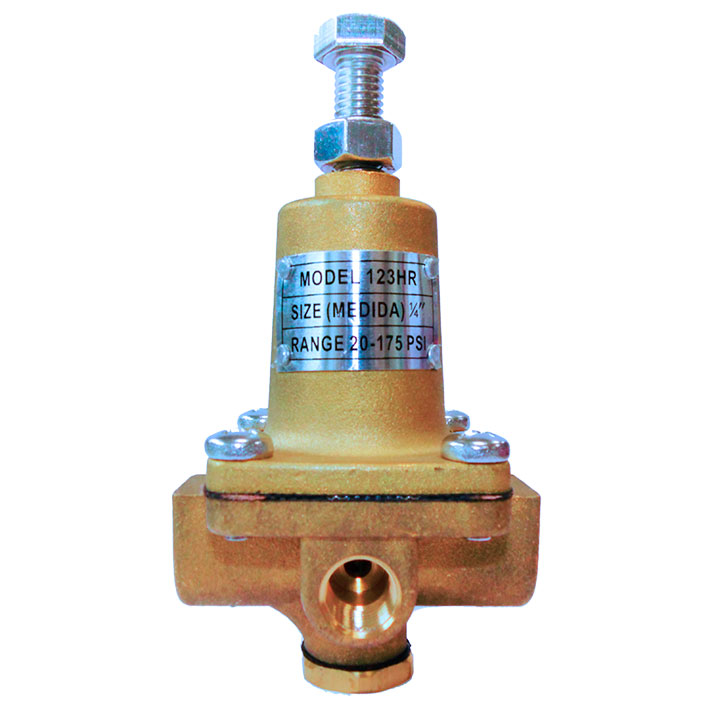

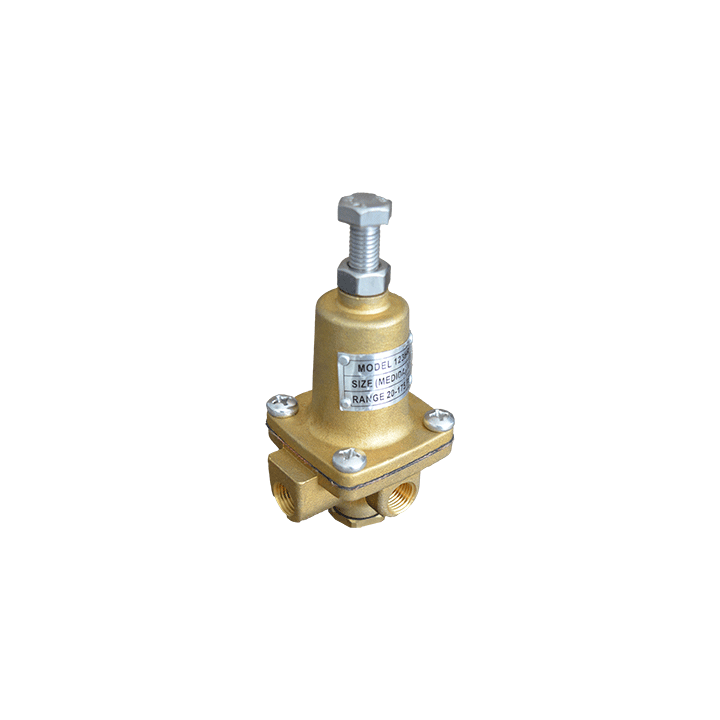

This metallic pilot has been designed so that, assembled with a hydraulic valve, it automatically reduces from a higher and fluctuating pressure upstream to a lower and constant pressure downstream, regardless of the variation in flow.
SPECS:
Materials
- Body: Brass
- Spring: Stainless steel
- Membrane: Natural rubber
- Screw and nut: Stainless steel
- Shaft: stainless steel

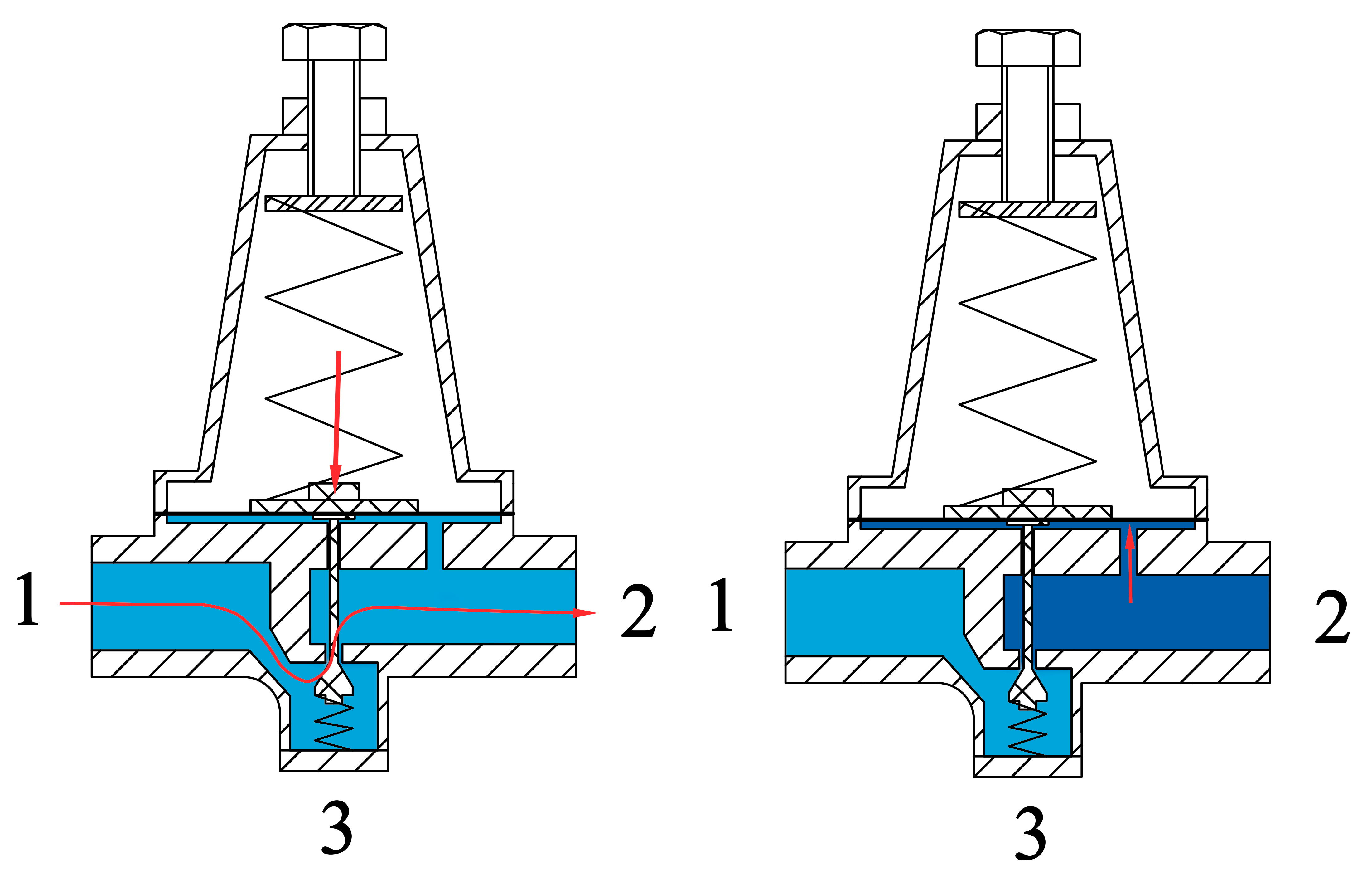

Functioning:
To regulate the pressure, the upper screw of the pilot is used. Tightening the screw will increase the balance pressure and loosening it will decrease it. The screw will be turned little by little so that the pressure stabilizes.
Upon reaching the desired pressure, the position of the screw will be fixed by means of the nut.
Instalation and maintenance
For a correct operation of the pilot, it is recommended to respect the assembly diagrams, using the appropriate fittings for the type of thread.
Seal the connectors with liquid Teflon or tape. Both the installation and the manipulation of the pilot will be carried out with adequate tools and by qualified personnel.
