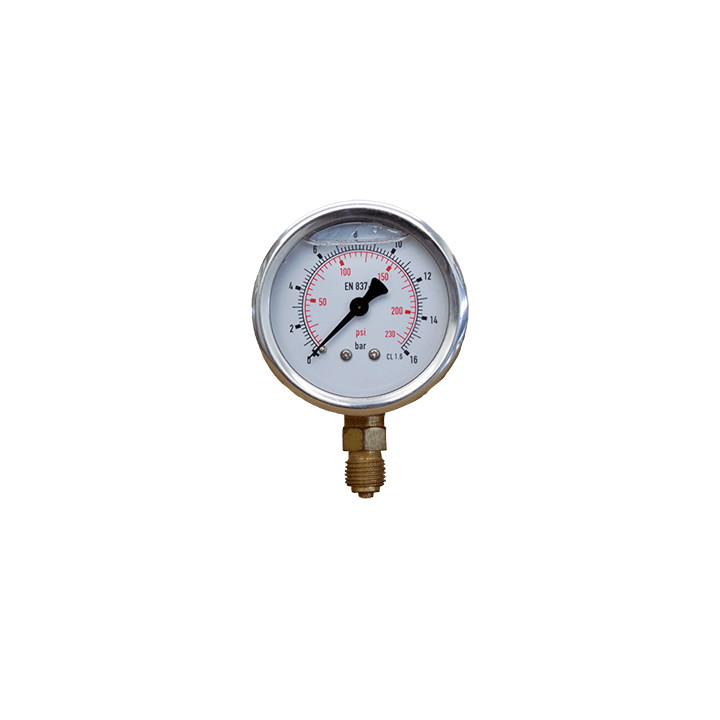

Pressure gauge with bar and i.s.p. scale available in PN6, PN10 and PN16. The gauge has a glycerine filled case, which helps to dampen vibration and pulsation on the gauge dial, allowing for more stable and accurate readings. Can be used in all gas and fluid systems compatible with cuprous metals of the sensing element and the fitting.

Categoría:

Descripción

Characteristics of the glycerin manometer

  • Shock and vibration resistant
  • Especially robust version
  • DN 63 and DN 100 certified by Germanischer Lloyd and Gosstandart
  • Measuring range up to 0 … 1,000 bar

SPECS

  • Version: EN 837-1
  • Nominal diameter in mm: 50, 63, 100 mm
  • Accuracy class: DN 50, 63: 1.6/ DN 100: 1.0
  • Scale ranges: DN 50: 0 … 1 to 0 … 400 bar/ DN 63, 100: 0 … 0.6 to 0 … 1,000 bar as well as all corresponding ranges for negative pressure and pressure negative and positive on a scale
  • Maximum load: DN 50: 0…1 to 0…400 bar/ DN 63, 100: 0…1.6 to 0…1000 bar
  • Admissible temperature: Ambient: -20 … +60 °C/ Medium: +60 °C maximum
  • Temperature influence: In case of deviation from the reference temperature in the measuring system (+20 °C): maximum ±0.4 %/10 K of the display range
  • Temperature type: IP 65 according to EN 60529 / lEC 52
