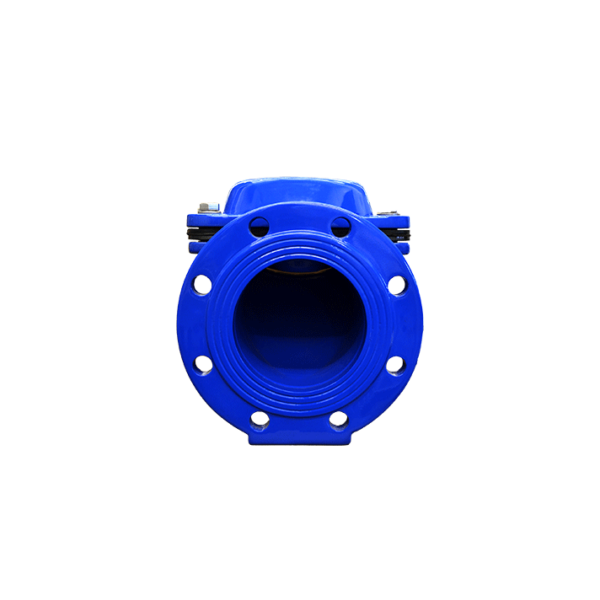

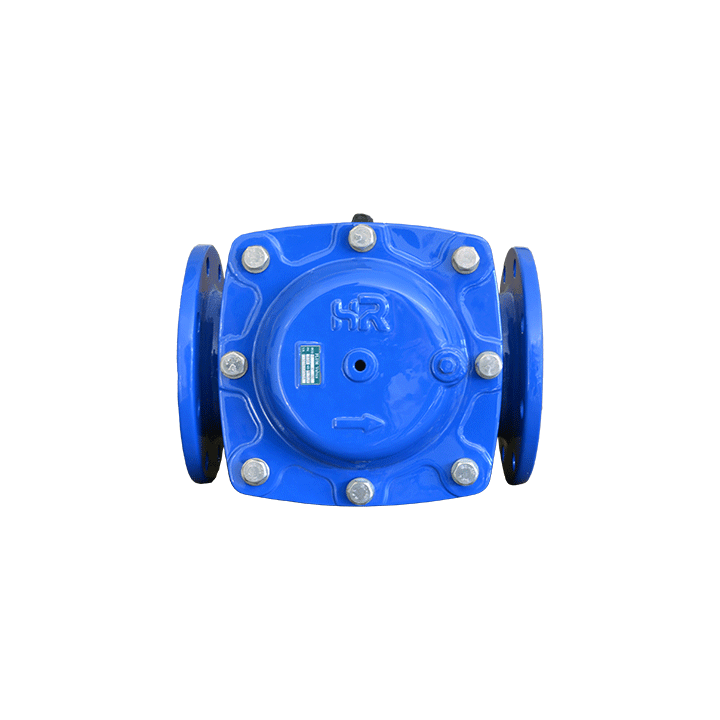

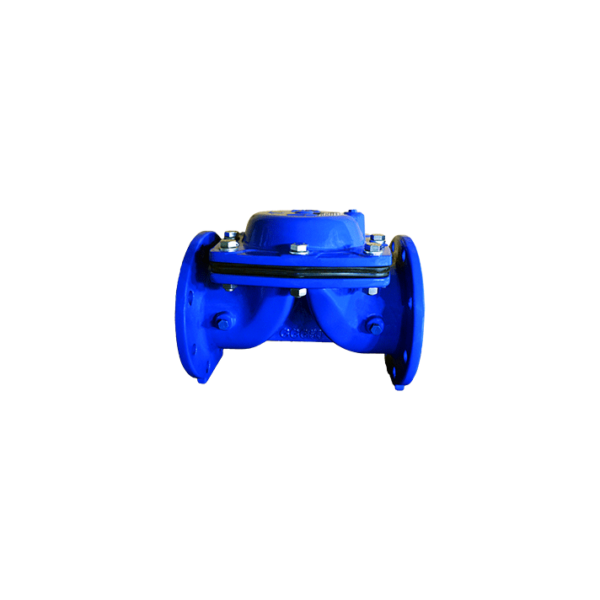

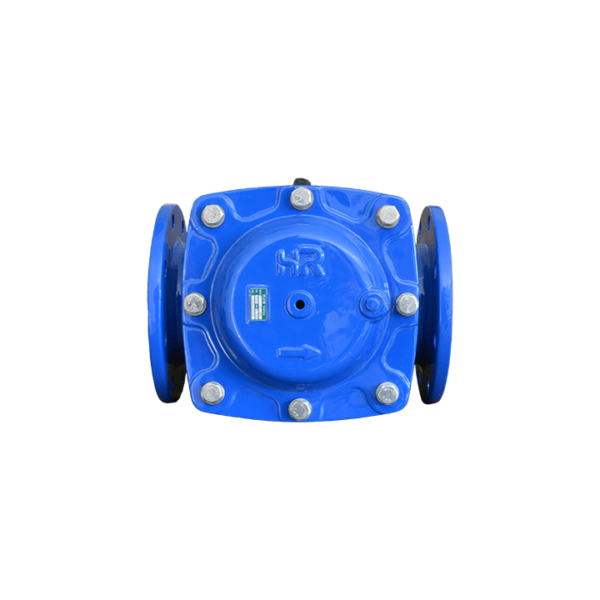

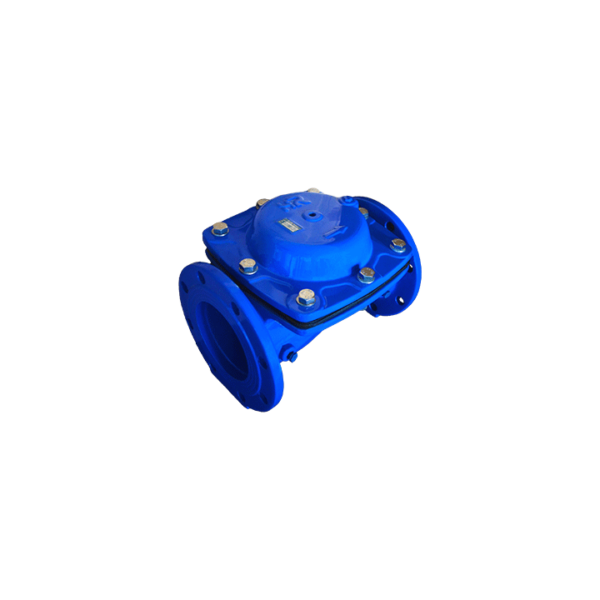

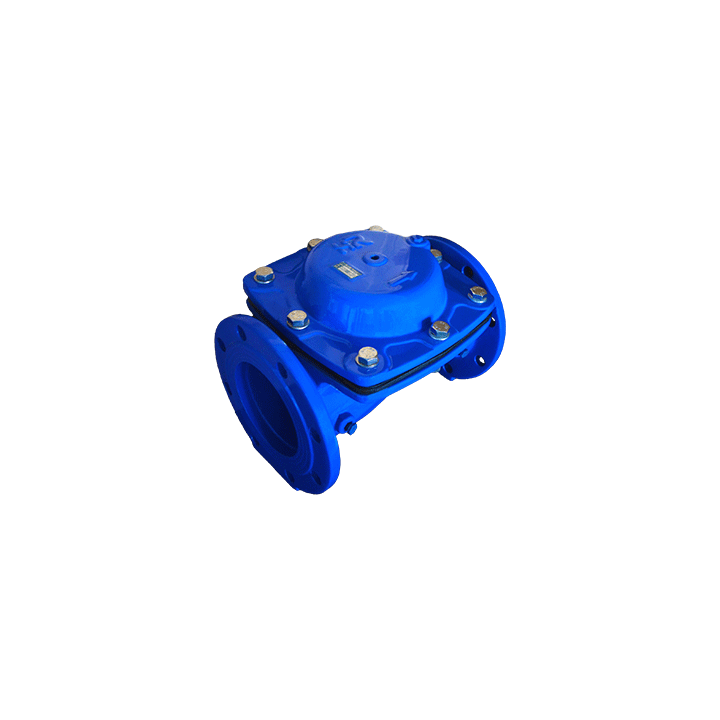

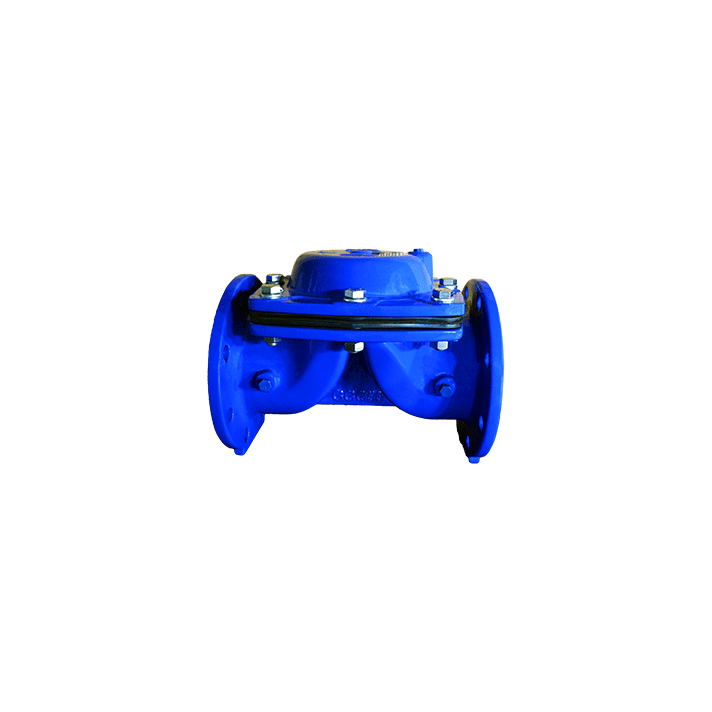

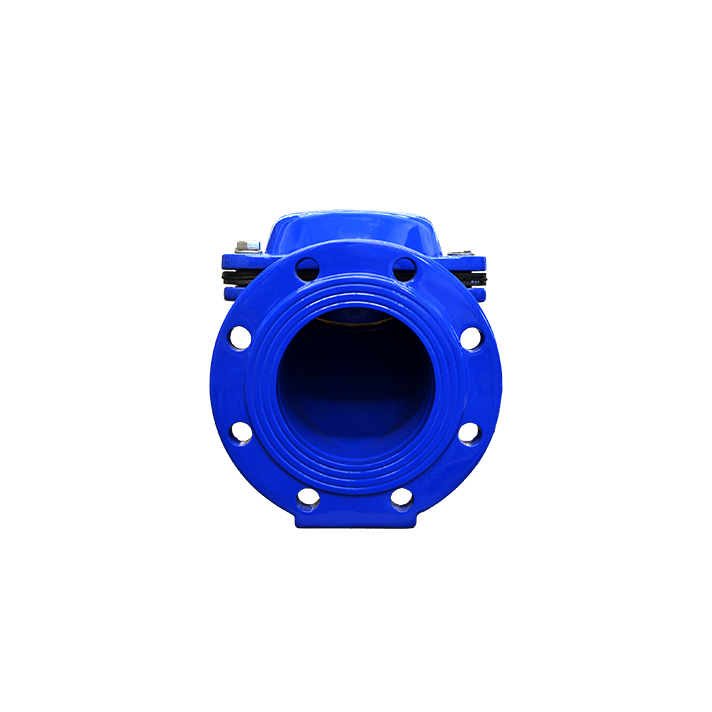

MODEL HR10 FLANGE (EN)

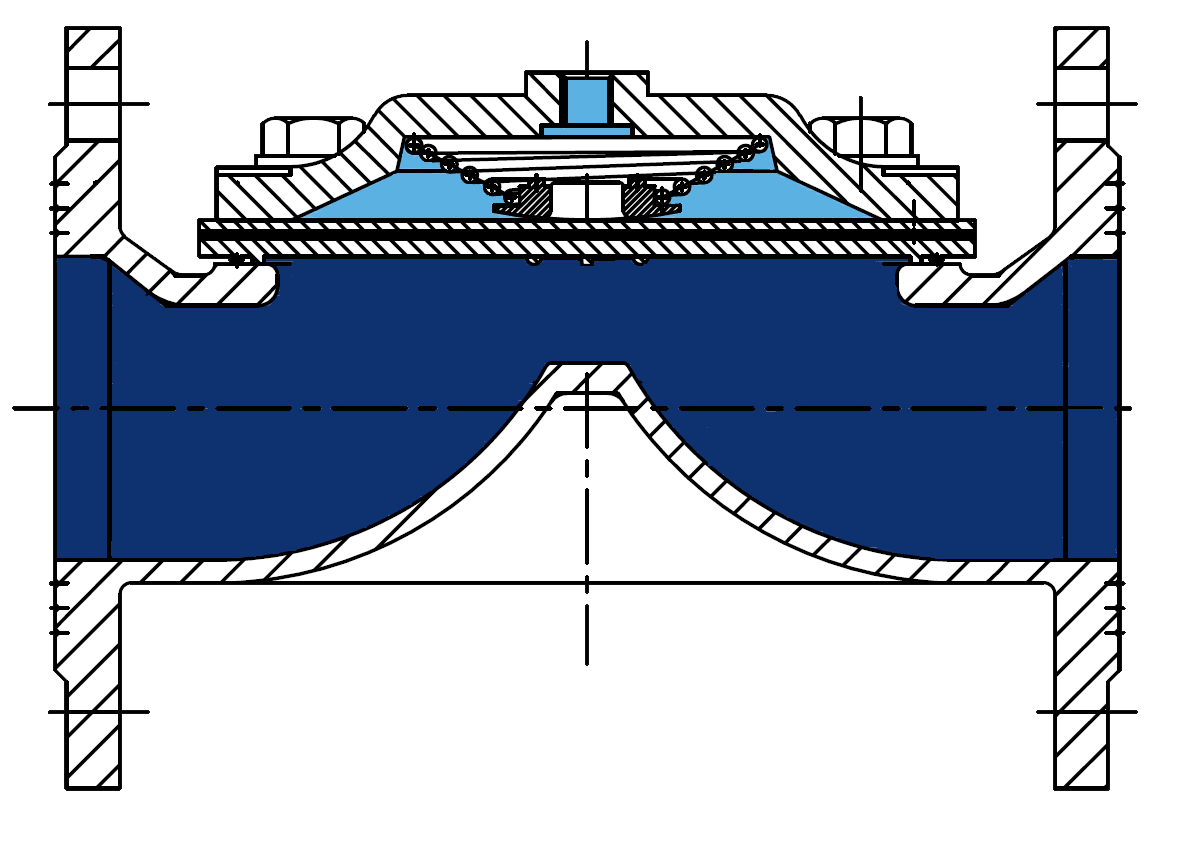

The HR FLUM VALVES cast iron hydraulic valve is a spring-loaded diaphragm valve with a single chamber, with a basic opening and closing operation due to the pressure exerted by the water in the pipe.

  • The HR FLUM VALVES range comprises from DN 80A -3″  (3-3-3) to DN300 -12″   in PN 6 and PN 16.
Categoría:

Descripción

  • The simplicity of its design, construction and operation allow the valve to have a wide variety of applications in different types of irrigation and industry systems. Performing various functions depending on whether it is equipped, for example:
    • Manual opening and closing valve
    • Solenoid valve
    • Pressure reducer
    • Pressure sustaining
    • Flow limiter etc.

    The HR FLUM VALVES range comprises from DN 80A -3″  (3-3-3) to DN300 -12″   in PN 6 and PN 16.

    SPECS:

    Materials

    • Body and cover: Gray cast iron / ductile cast iron, with epoxy-polyester paint coating.
    • Membrane: Natural rubber reinforced with nylon fabric.

    Utilities

    • agricultural irrigation
    • Greenhouses
    • Gardens
    • Industrial processes

    Advantage:

    • Easy maintenance and installation.
    • The membrane can be changed by removing the top cover without the need to remove the valve from the pipeline.
    • Slow opening and closing, avoiding water hammer.
    • Low load loss.
