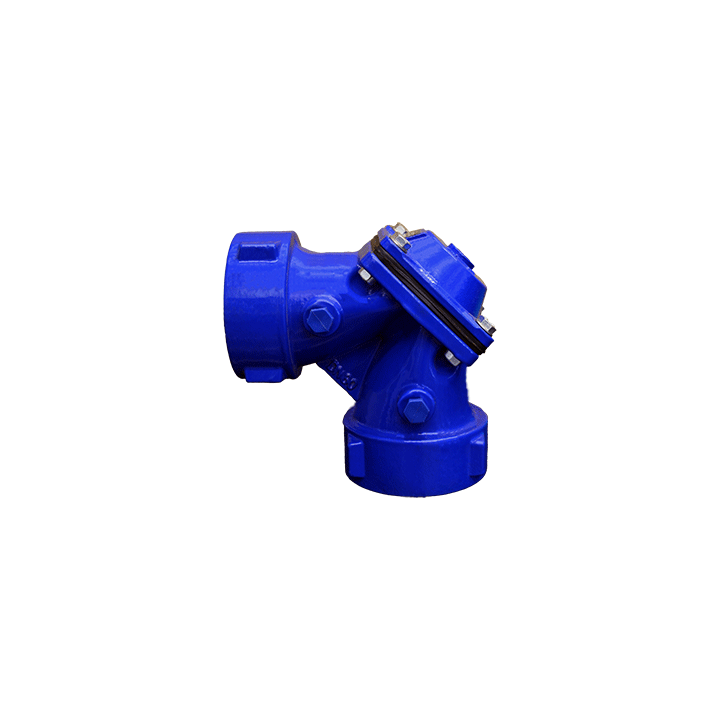

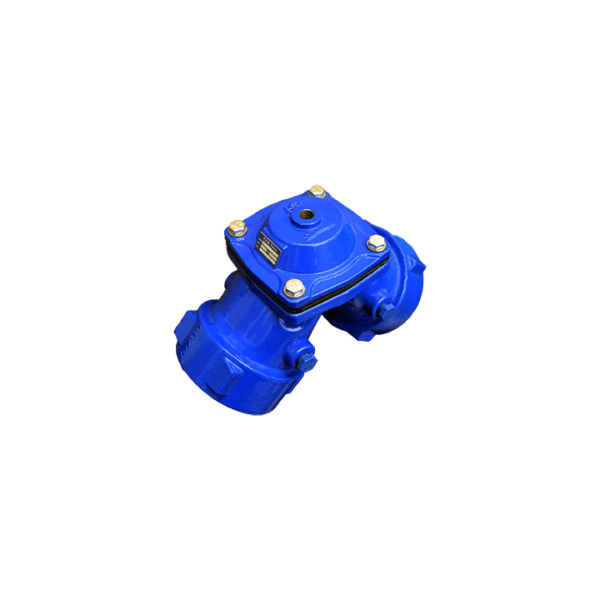

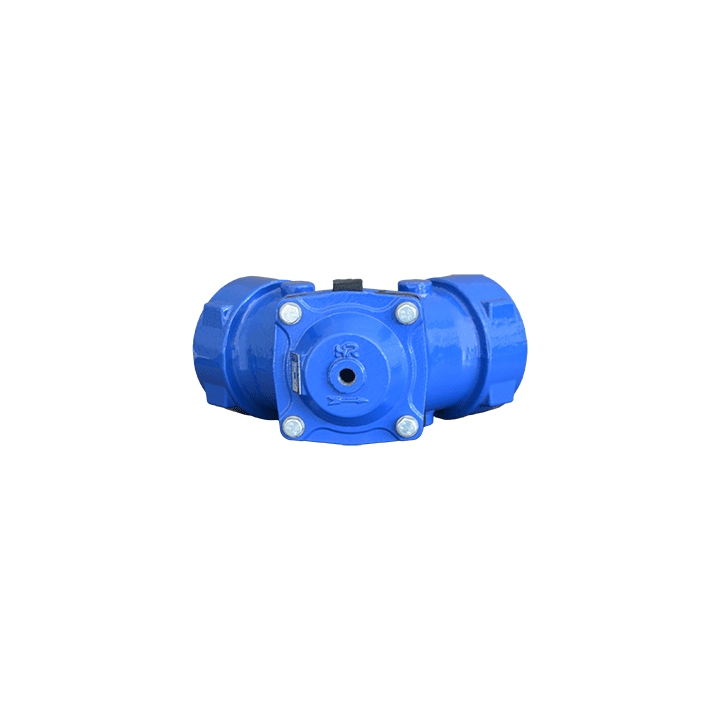

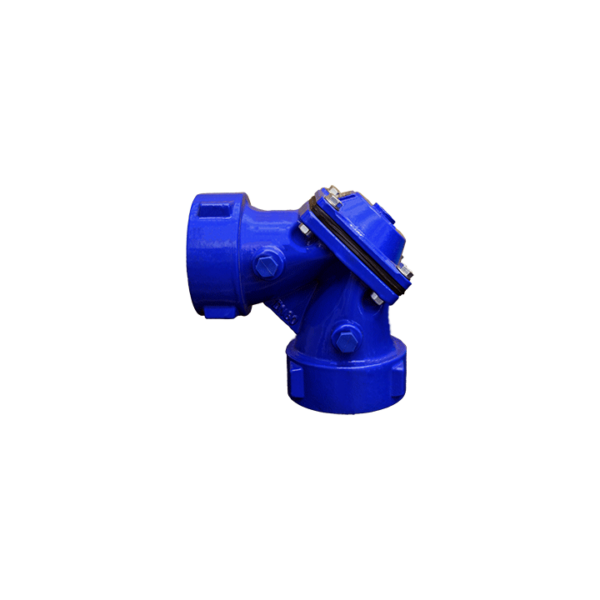

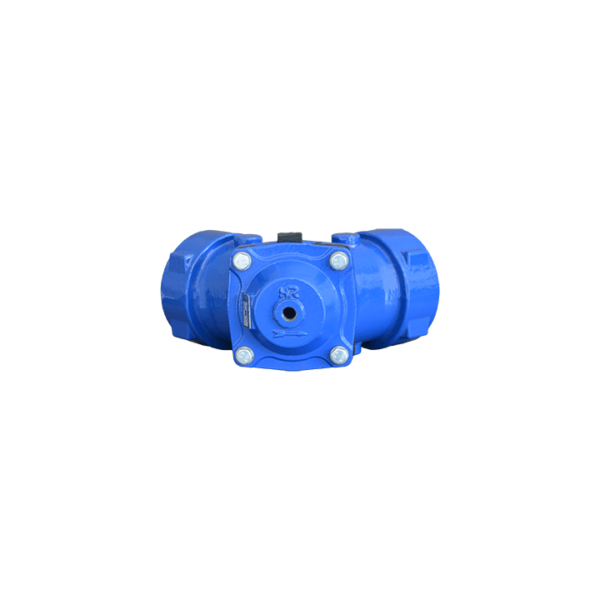

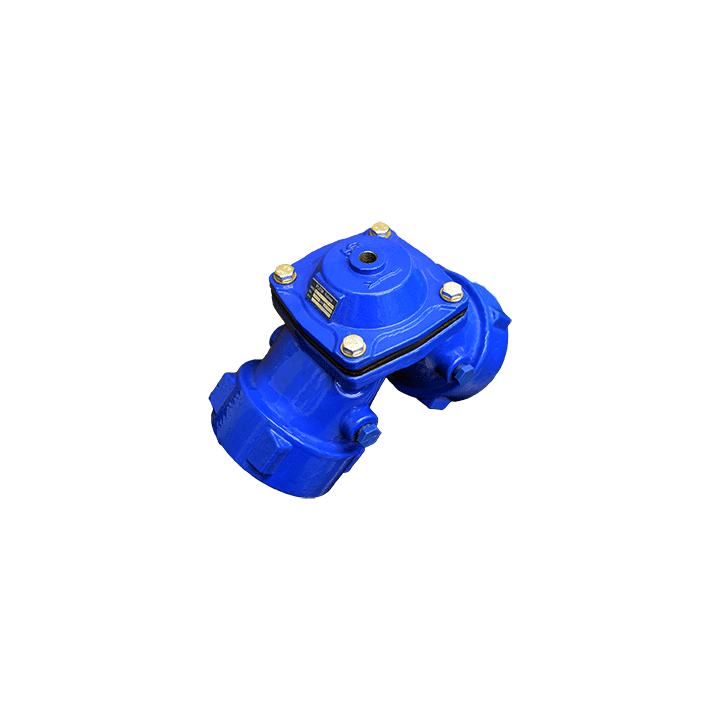

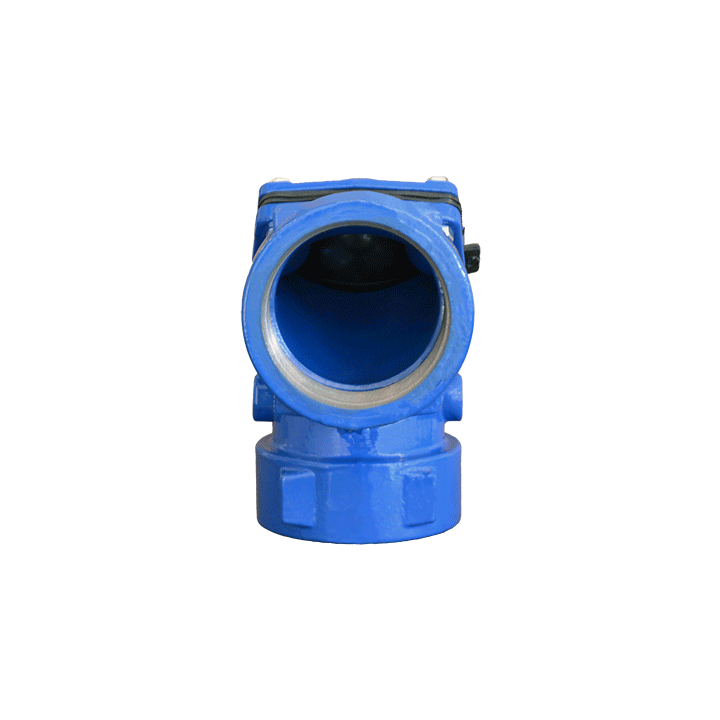

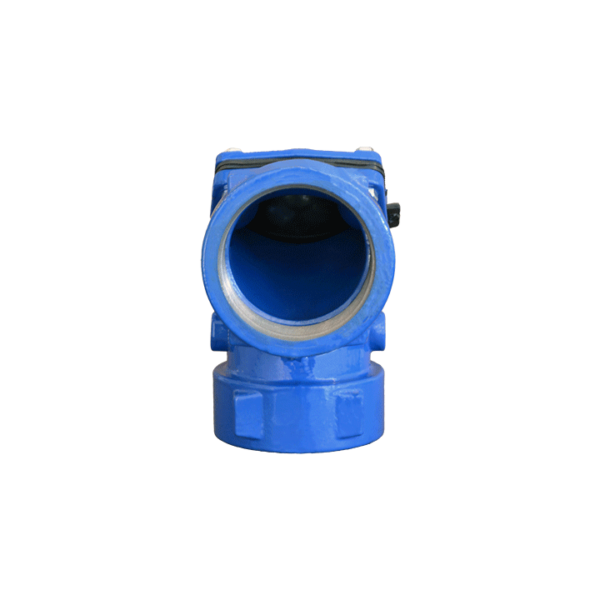

MODEL HR10 THREAD 90º (EN)

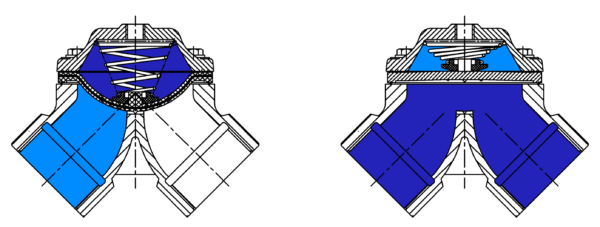

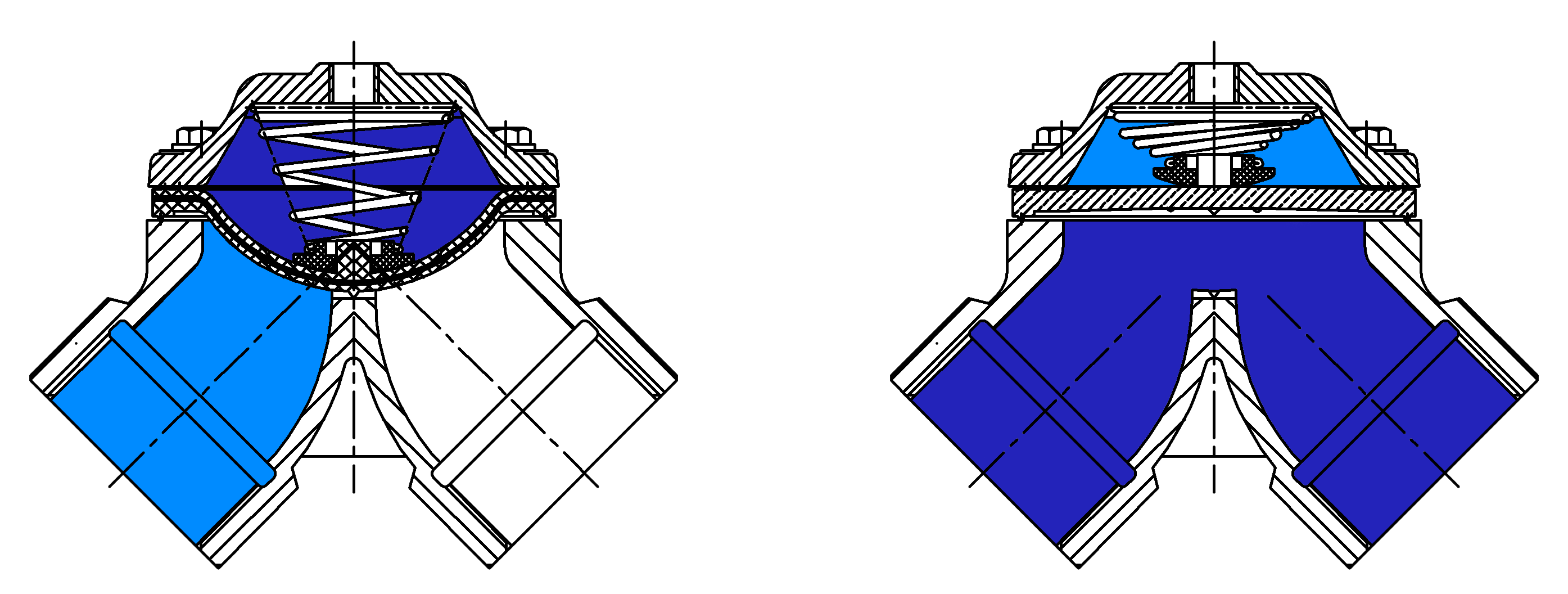

The HR FLUM VALVES cast iron valve is a single-chamber, springless diaphragm hydraulic valve, with a basic opening and closing operation due to the pressure exerted by the water in the pipe. Thread connection.

  • The HR FLUM VALVES range comprises from DN 50 – 2″ to DN 80C- 3″ (3-2-3) in PN 6 and PN 16.
Categorías: ,

Descripción

The simplicity of its design, construction and operation allow the valve to have a wide variety of applications in different types of irrigation and industry systems. Performing various functions depending on whether it is equipped, for example:

  • Manual opening and closing valve
  • Solenoid valve
  • Pressure reducer
  • Pressure sustaining
  • Flow limiter etc.

The HR FLUM VALVES range comprises from DN 50 – 2″ to DN 80C- 3″ (3-2-3) in PN 6 and PN 16.

SPECS:

Materials

  • Body and cover: Gray cast iron / ductile cast iron, with epoxy-polyester paint coating.
  • Membrane: Natural rubber reinforced with nylon fabric.

Utilities

  • agricultural irrigation
  • Greenhouses
  • Gardens
  • Industrial processes

Advantage:

  • Easy maintenance and installation.
  • The membrane can be changed by removing the top cover without the need to remove the valve from the pipeline.
  • Slow opening and closing, avoiding water hammer.
  • Low load loss.
