HRV-W:

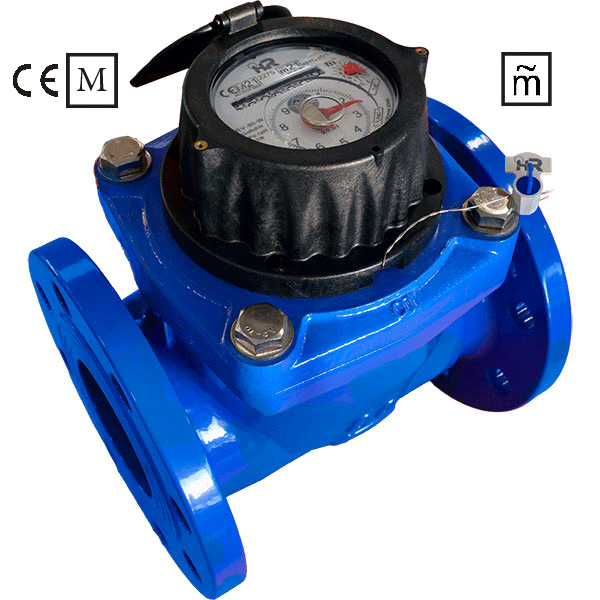

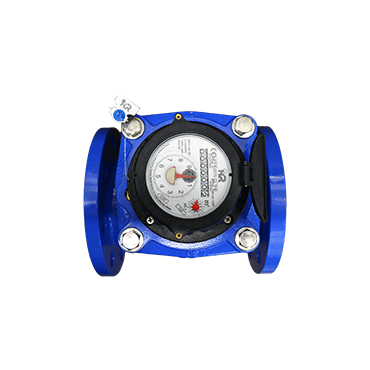

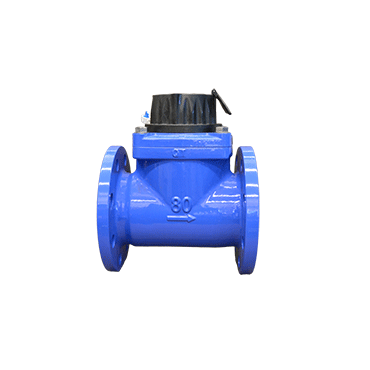

It is a meter that uses an axial turbine as a speed sensor, the axis of the turbine coincides with the axis of passage of the water, with magnetic transmission and dry sphere. The special design of the turbine allows it to work with high sensitivity at low flow rates. The measuring insert is encapsulated and rotatable. The visor does not fog up internally,
ensuring easy reading. The loss of load due to measurement effects is minimal. our accountants
Woltman are characterized by their high measurement stability.
FEATURES:
- Approved U0-D0 (no need for straight sections upstream or downstream).
- Body in ductile cast iron with epoxy paint for food use, baked.
- Fully removable mechanism without the need to disassemble the meter from the pipe and manufactured
with technical plastics in combination with stainless steel for the metal parts. - Optimum hydraulic performance. The accountant has the following certificates:
-Certificate of Conformity for drinking water of Model MID (equivalent to Class B) according to the - European Directive 2014/32/EU and Royal Decree 889/2006 of July 21, complying with the
UNE EN 14154, ISO 4064 and OIML R49 standards throughout its range. - Pre-equipped for impulse emission. Reed and opto-electronic pulse option.
- 360º adjustable clock with IP 68 protection degree and direct totalization by means of rollers
numbered. - Dry and watertight sphere, with direct magnetic transmission.
