Descripción

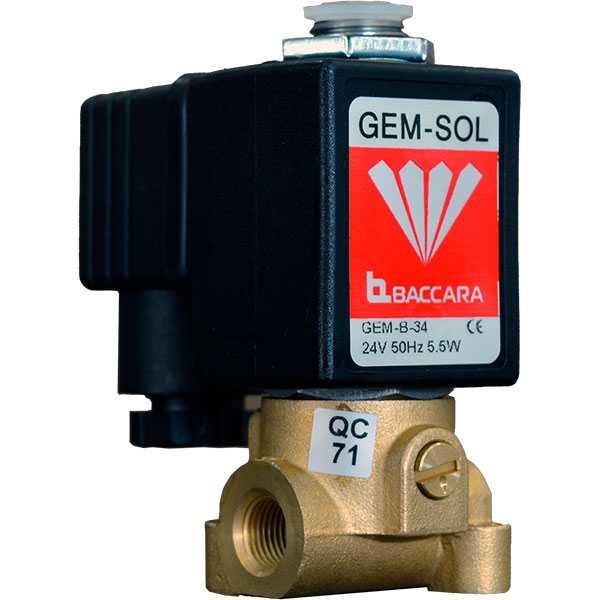

All Baccara Gemsol three-way solenoid models are manufactured in two basic configurations: NO (normally open) and NC (normally closed) with different power options (12, 24 and 110 V/AC or DC). The base valve of the set is machined in brass and equipped with a manual opening control and 1/8″ female threaded holes to connect to the microtube.
The Baccara solenoid core acts as a shutoff valve in both positions. The coil is encapsulated in high thermal resistance nylon, with a standardized attachable connector. Its assembly on the core allows any orientation of the connector to facilitate its connection.
Gemsol Solenoid Materials
- Base: body and manual control in brass.
- Gaskets: NBR.
- Actuator: Core in AISI 400 series stainless steel,
- Body: in AISI 300 series stainless steel
- Copper ring Closures: NBR.
- Coil: encapsulated in NYLON.
